KOE Series High Stability OCXO
KOE36D
KOE36D
Performance Index

Frequency Range:9.6MHz~20MHz
Supply Voltage:12VDC(VCC±5%)
Start-up Power Consumption:<3.5W(+25℃,Duration Time <60s)
Steady State Power Consumption:<1.2W(+25℃,Duration Time <180s)
Output Waveform:Sine
Frequency Stability vs Temperature:±1ppb、±3ppb、±5ppb
Frequency Slope vs Temperature:<2E-11/℃
Short Term Frequency Stability(ADEV):<1E-12@1s,<2E-12@10s
Aging(After 1days of Continuous Operation):<±1E-10/day,<±1E-8/year
Phase Noise:<-135dBc/Hz@10Hz,<-145dBc/Hz@100Hz,<-155dBc/Hz@1KHz,<-158dBc/Hz@10KHz

Operable Temperature Range:-40→+70℃
Storage Temperature Range:-55→+85℃

Size:36×27×13mm

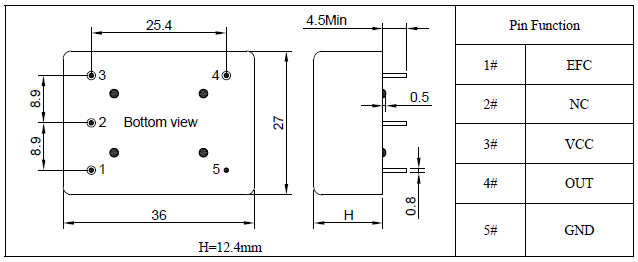

Outline Drawing and Pin Function
36D Outline Drawing.png
