SMD 7×5mm Series XO

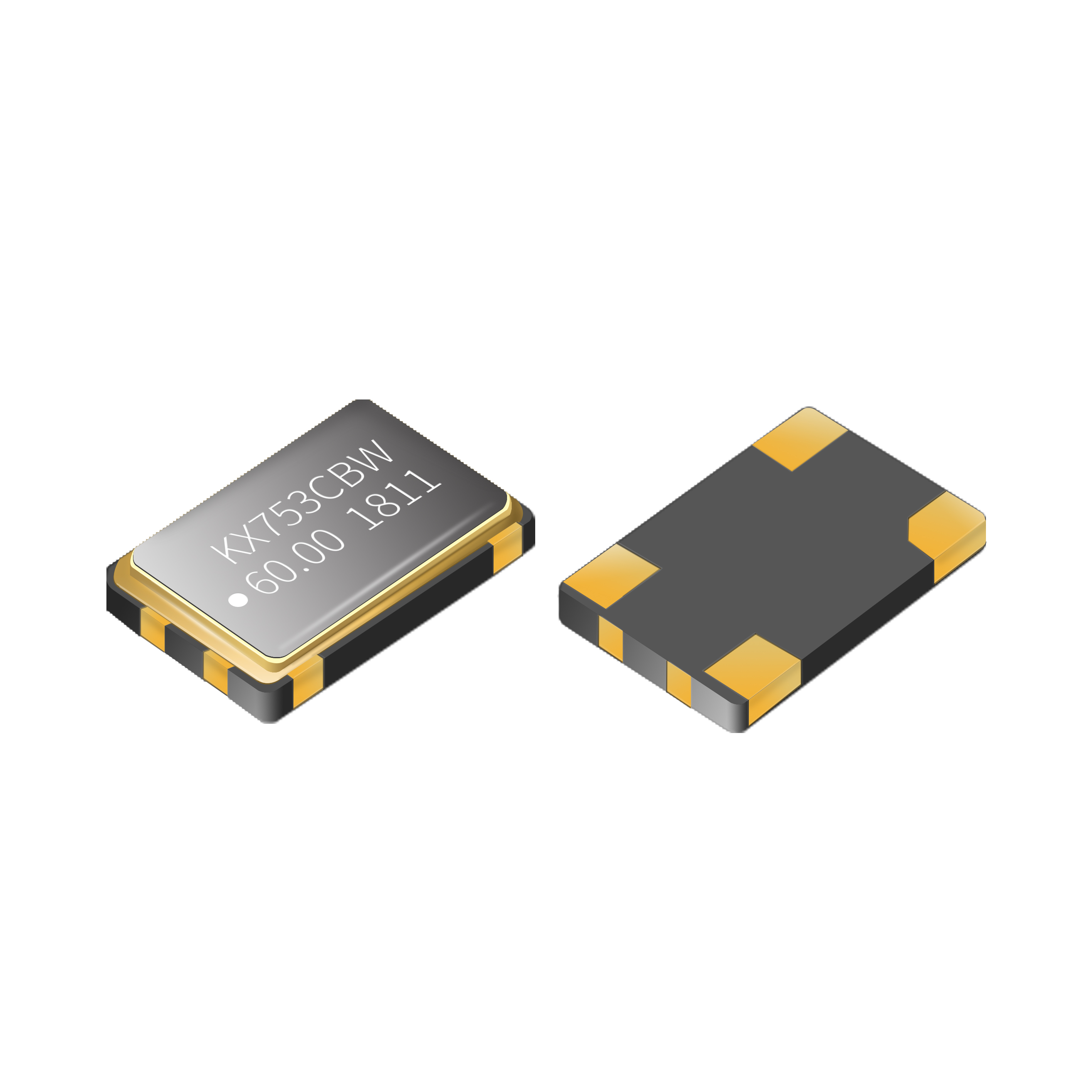

KX753CBW
KX753CBW
Performance Index(XO)

Frequency Range:1MHz~250MHz
Supply Voltage:3.3VDC(VCC±5%)
Current Consumption:<40mA
Output Waveform:CMOS
Output “1”Level:>90%VCC
Output “0”Level:<10%VCC
Rise/Fall Time:<5ns
Output Load:15pF
Frequency Stability vs Temperature:±30ppm(-40~+85℃)
Aging(After 1days of Continuous Operation):<±3ppm/year
Output Enable Control:>0.7VCC(Enable),<0.3VCC(Disable)

Operable Temperature Range:-40→+85℃
Storage Temperature Range:-55→+85℃

Size:7.0×5.0×1.3mm

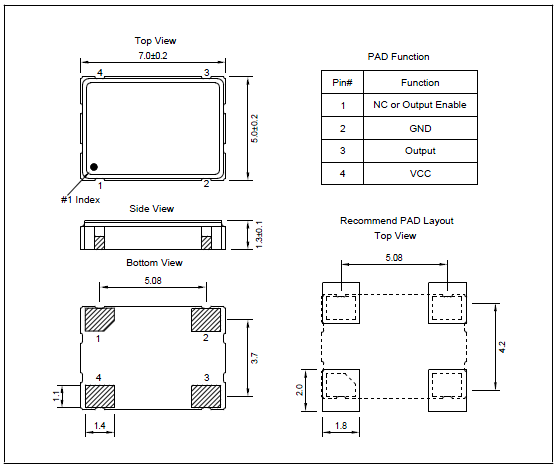

Outline Drawing and Pin Function
XO 7050 CMOS.png
