SMD 7×5mm(4PAD) Series TCXO & VCTCXO
KTC753BD
KTC753BD
Performance Index(TCXO)

Frequency Range:9.6MHz~50MHz
Supply Voltage:3.3VDC(VCC±5%)
Current Consumption:<5mA
Output Waveform:CMOS
Output Level:>90%VCC
Output Load:15pF
Frequency Stability vs Temperature:±0.5ppm
Aging(After 1days of Continuous Operation):<±0.01ppm/day,<±1.0/year
Phase Noise(20MHz):<-115dBc/Hz@100Hz,<-138dBc/Hz@1KHz,<-150dBc/Hz@10KHz

Operable Temperature Range:-40→+85℃
Storage Temperature Range:-55→+85℃

Size:7.0×5.0×1.9mm

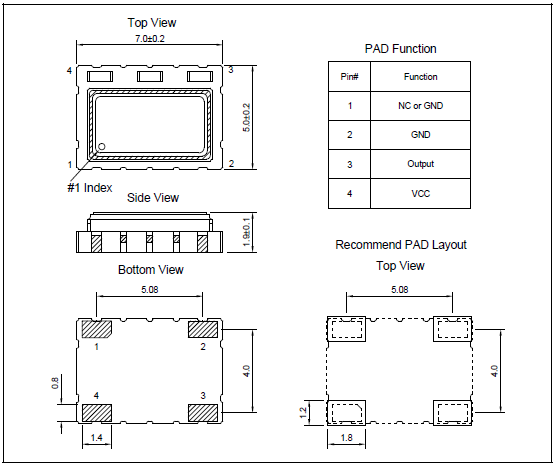

Outline Drawing and Pin Function
TCXO 7050 4PAD.png
