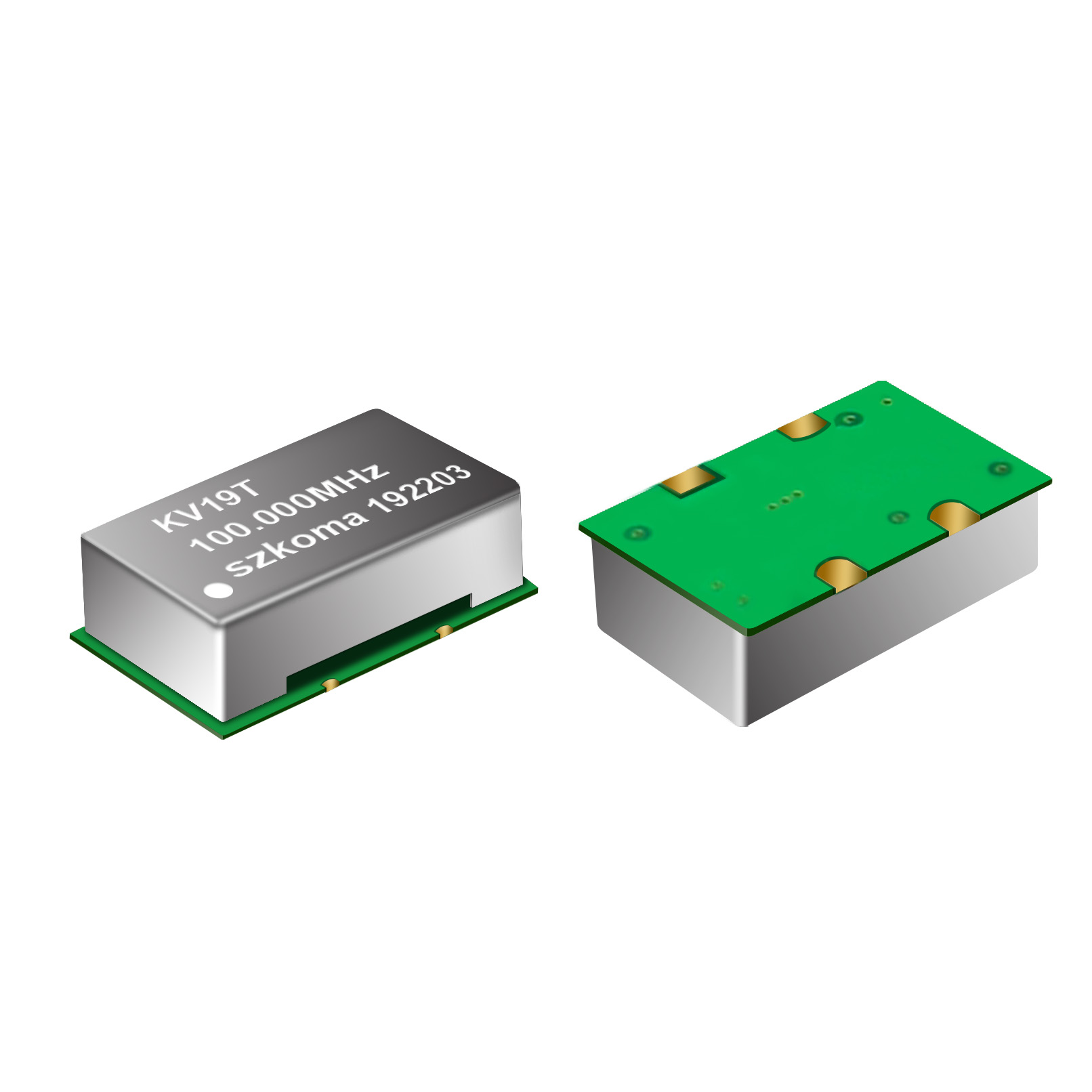

SMD 14×9mm Series Low Phase noise VCXO
KV19

KV19
高性能VCXO(High Performance VCXO)

可提供频率范围 Frequency Range:40MHz~125MHz
Supply Voltage:5V or 3.3V
Current Consumption:<25mA
Output Waveform:sinewave or LVCMOS
Output Power:>+7dBm
Output Load:50Ω
Initial Frequency:<±5ppm
Frequency Stability vs Temperature:<±15ppm
Aging(After 48h of Continuous Operation):<±3ppm/year
Phase Noise(100MHz):<-145dBc/Hz@1KHz,<-170dBc/Hz@100KHz,-175dBc/Hz@1MHz
Input Control Voltage Range:0~5V
Frequency Control Range:>±25ppm

Operable Temperature Range:-40→+85℃

Size:14.2×9.2×3.5mm
Outline Drawing and Pin Function
