Frequency Range:30MHz~1500MHz
Supply Voltage:3.3VDC(VCC±5%)
Current Consumption:<80mA
Output Waveform:LVDS
Output “1”Level:<1.6V
Output “0”Level:>0.9V
Rise/Fall Time:<1ns
Output Load:100Ω
Phase Jitter(12KHz~20MHz):<1ps
Frequency Stability vs Temperature:±30ppm(-40~+85℃)
Aging(After 1days of Continuous Operation):<±3ppm/year
Input Control Voltage Range:0.3~3.0V
Frequency Control Range:>±50ppm
Input Impedance:>1MΩ
Output Enable Control:>0.7VCC(Enable),<0.3VCC(Disable)
Operable Temperature Range:-40→+85℃
Storage Temperature Range:-55→+85℃
Size:7.0×5.0×1.5mm

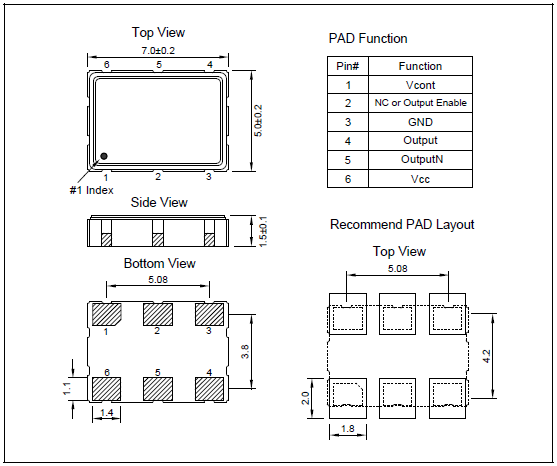

Outline Drawing and Pin Function
