Frequency Range：40MHz~120MHz
Supply Voltage：5VDC、12VDC（VCC±5%）
Start-up Power Consumption：<3.2W（+25℃，Duration Time <60s）
Steady State Power Consumption：<1.0W（+25℃，Duration Time <180s）
Output Waveform：Sine、LVTTL、HCMOS
Frequency Stability vs Temperature：<±0.1ppm
Short Term Frequency Stability（ADEV）：[email protected]（Typical Value）
Aging（After 1days of Continuous Operation）：<±5E-9/day，<±5E-7/year
Phase Noise（3）：<-90dBc/[email protected]，<-120dBc/[email protected]，<-150dBc/[email protected]，<-160dBc/[email protected]
Phase Noise（4）：<-95dBc/[email protected]，<-125dBc/[email protected]，<-155dBc/[email protected]，<-165dBc/[email protected]
Phase Noise（5）：<-100dBc/[email protected]，<-130dBc/[email protected]，<-160dBc/[email protected]，<-170dBc/[email protected]

Operable Temperature Range：-40→+70℃
Storage Temperature Range：-55→+85℃
Size：20.2×20.2×11mm

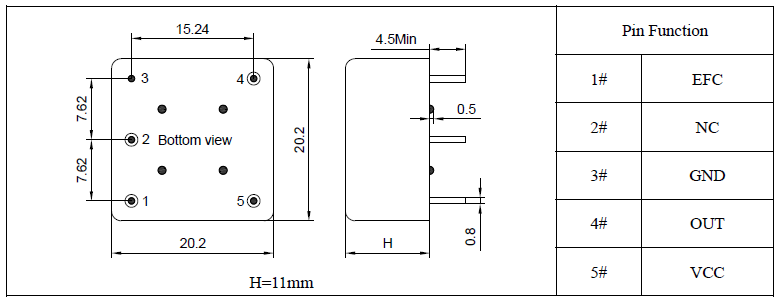

Outline Drawing and Pin Function
