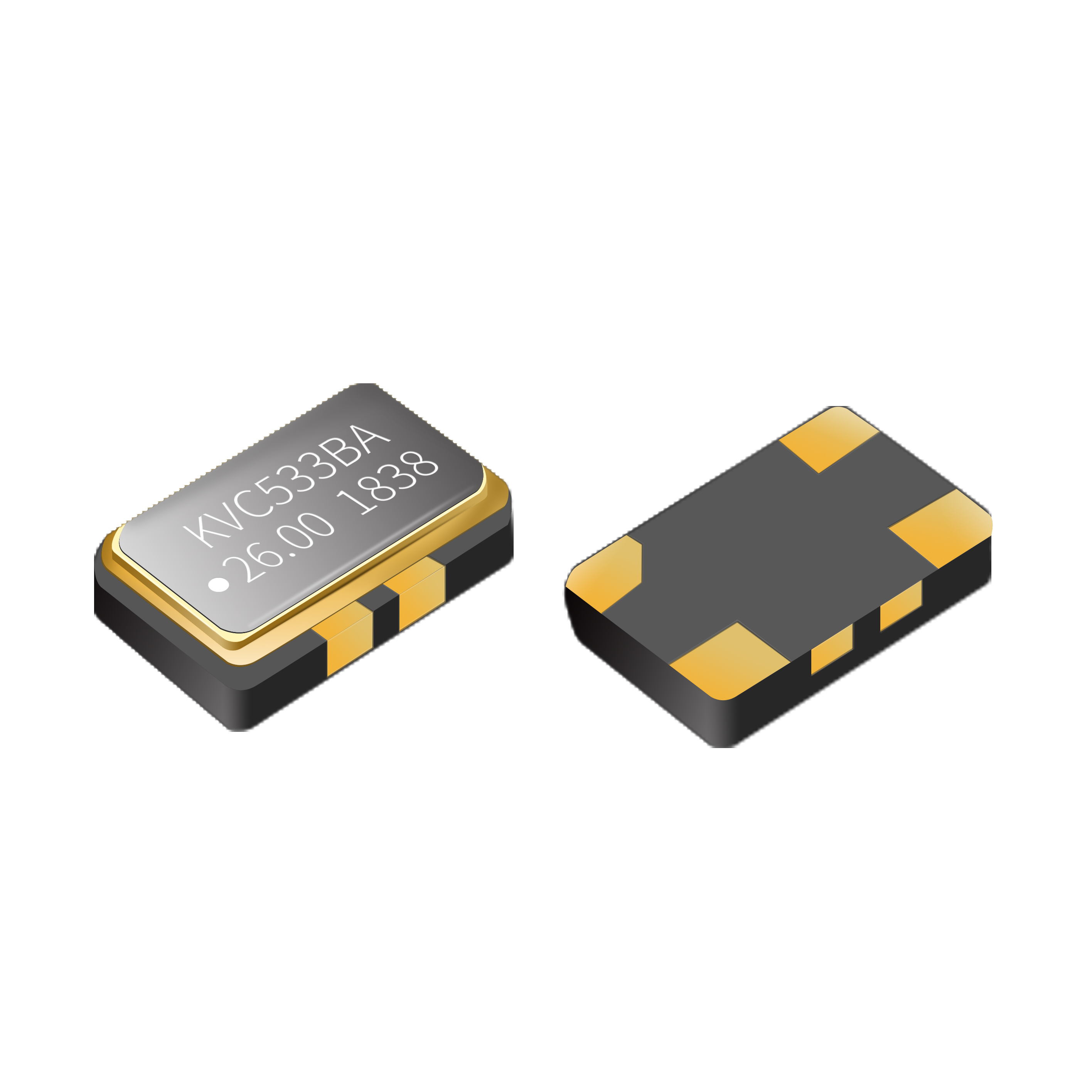

SMD 5×3.2mm(4PAD)Series TCXO & VCTCXO
KTS533BC
KTS533BC
Performance Index(TCXO)

Frequency Range:9.6MHz~40MHz
Supply Voltage:3.3VDC(VCC±5%)
Current Consumption:<2.5mA
Output Waveform:Clipped sine
Output Level:>0.8Vpk-pk
Output Load:10KΩ//10pF
Frequency Stability vs Temperature:±0.28ppm
Aging(After 1days of Continuous Operation):<±0.01ppm/day,<±1.0/year
Phase Noise(10MHz):<-120dBc/Hz@100Hz,<-140dBc/Hz@1KHz,<-155dBc/Hz@10KHz

Operable Temperature Range:-40→+85℃
Storage Temperature Range:-55→+85℃

Size:5.0×3.2×1.5mm

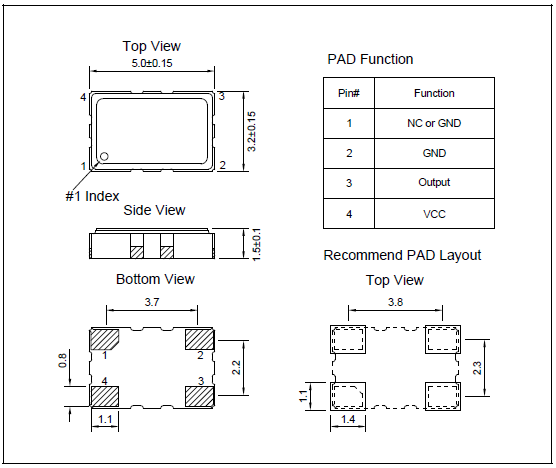

Outline Drawing and Pin Function
TCXO 5032 4APD.png
